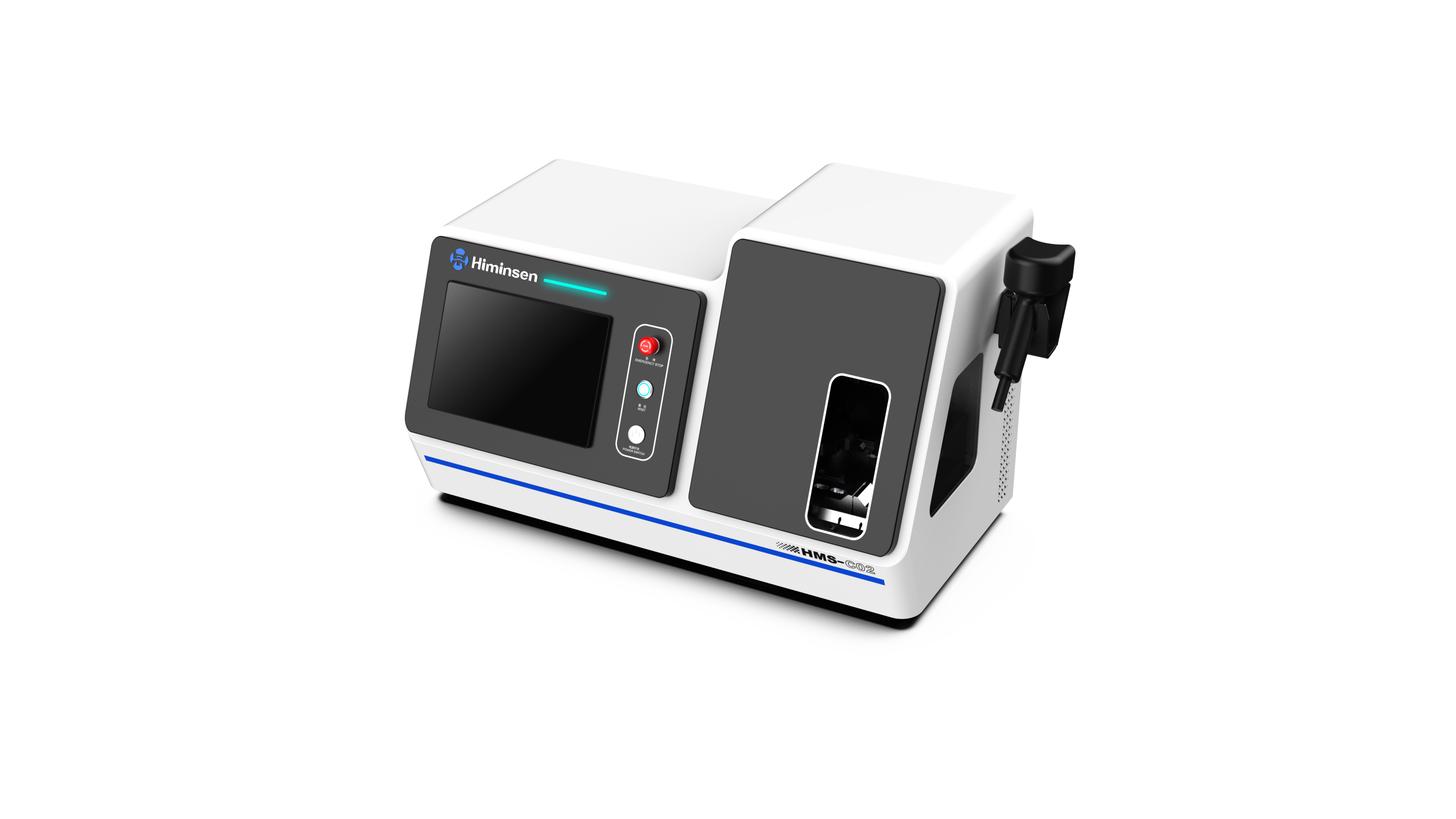

The HMS‑C02 side‑thrust tester adopts a lightweight compact structural design with an exquisite and good‑looking appearance. Equipped with electric cylinder and air cylinder for high‑precision positioning, it realizes automatic side‑thrust testing with stable running performance. Featuring an industrial control host plus touch‑screen display for intelligent operation, this testing machine brings low maintenance cost for users.
This device is designed for side‑thrust testing of copper wires ranging from 4mm² to 120mm² and aluminum wires from 4mm² to 150mm². It is widely applied in multiple industries including automotive, instrumentation, communication equipment and household appliances, delivering reliable crimp joint quality verification for wire harness manufacturing.
Main Technical Specifications
- Input Voltage: AC 220V, 50Hz
- Processing Range: 4mm²‑120mm² copper wire / 4mm²‑150mm² aluminum wire
- Machine Dimensions: L840 × W470 × H545 mm
- Machine Power: 1.5 kW
- Machine Weight: 78 kg
- Display Mode: Industrial control host + Touch‑screen display
- Production Efficiency: 250‑400 PCS/H
- Moving Components: Motor, Ball Screw, Air Cylinder
Key Features
✅ Lightweight integrated structure, compact footprint for workshop deployment ✅ Electric‑cylinder & air‑cylinder combined positioning for high‑accuracy automatic side‑thrust test ✅ Stable continuous operation, suitable for mass‑production harness quality inspection ✅ Intuitive touch‑screen HMI, simple operation and low‑cost maintenance ✅ Covers broad wire cross‑section range for copper & aluminum cables ✅ Fit for automotive wiring harness, instrument, communication and home appliance industries
